The bandsaw SV3 MAXI reaches a maximum cutting height of 45 cm. According to the work to realize, it is possible to set the machine on the articulated arm BS900 or on the column, to ensure precision while cutting shapes and circles. SV3 MAXI model includes:
- BANDSAW SV3 MAXI
- COPYING DEVICE
- BELLOW PROTECTION SYSTEM
- DOUBLE HANDGRIP
TECHNICAL DATA
| Cutting width | 25″ (640 mm) |
| Cutting height | 16″ (400 mm) |
| Max cutting height with special blade-guide | 18″ (450 mm) |
| Dimensions of the work surface | 20″ x 25″ (500 x 640 mm) |
| Blade length | 144″ (3650 mm) |
| Minimum blade width | 0.11″ (3 mm) |
| Power of the motor | 3 HP – 2.2 KW |
| Weight | 265 lb (120 Kg) |
*The cutting tolerance, which depends on the type of blade used and on the cutting heights, is considered as the tolerance for standard bandsaw. The use of the blades does not guarantee a tolerance lower than ± 2 mm.
PRODUCT FEATURES
Copying Device
Bellow Protection
Double Handgrip
COMBINATIONS
SV3 MAXI WITH WORK BENCH – the band saw applied to the bench; it is used as fixed machine.
AP 900 – SV3 MAXI band saw is applied on the articulated arm BS400. The machinery might be hold on walls, columns, or pillars.

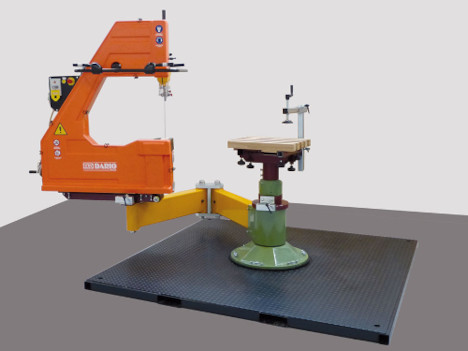

SET3000 – it includes the SV3 MAXI bandsaw applied to the articulated arm BS900 and the column; it gives the possibility to cut 360°.
