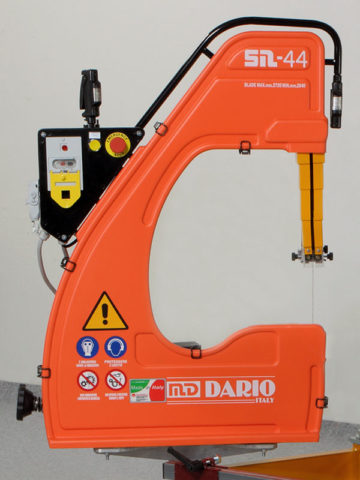

SN 44

With SN44 the operator can cut up to 40 cm high. As SN33, it can be applied on the mobile trolley (SET1500) or column (SET2000). SN44 model includes:

  • BANDSAW SN44
  • COPYING DEVICE
  • BELLOW PROTECTION SYSTEM
  • DOUBLE HANDGRIP
  • WORK SURFACE

TECHNICAL DATA

Cutting width 15″ (390 mm)
Cutting height 14″ (350 mm)
Maximum cutting height with special blade-guide 16″ (410 mm)
Dimensions of the work surface 19″ x 16″ (500 x 400 mm)
Blade length 107″ (2720 mm)
Minimum blade width 0.11″ (3 mm)
Power of the motor 1.5 HP – 1.1 KW
Weight 121 lb (55 Kg)

* Cutting tolerance, which depends on the type of blade used and on the cutting heights, is considered as the tolerance for standard bandsaw. The use of the blades does not guarantee a tolerance lower than ± 2 mm.

PRODUCT FEATURES

Copying Device

The use of the copying device is combined with template application: the device leans on the template and reproduce its shape on several wooden pieces.

Bellow Protection

Bellow protection system has been conceived for the operator safety and to protect the blade. It can be regulated according to cutting height, ensuring a work safety.

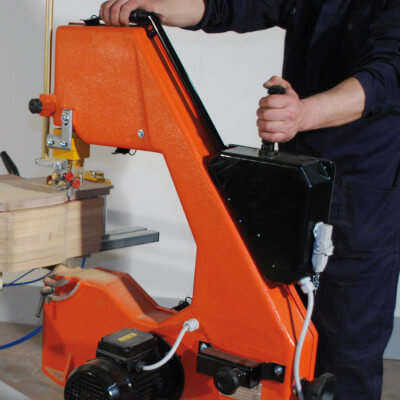

Double Handgrip

The double handgrip means safety: the machine works only when the operator places both hands on the control device.

Work Surface

Thanks to the work surface and its electrical panel MD DARIO® band saws can be used as table saws.

COMBINATIONS

SN44 WITH WORK BENCH – applied to the bench, the bandsaw is used as fix machine like a table saw.

AP 500 – SN44 band saw is applied on the articulated arm BS400. The machinery might be hold on walls, columns, or pillars.

SET1500 – It includes the SN44 bandsaw applied to the articulated arm and the mobile trolley. SET1500 is Easy to move and ideal for those who work on construction sites and places outside the company.

SET2000 – it includes the SN44 bandsaw applied to the articulated arm BS600 and the column, allowing to cut 360°.
