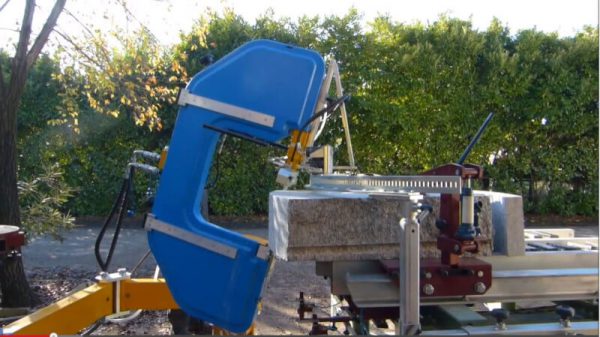

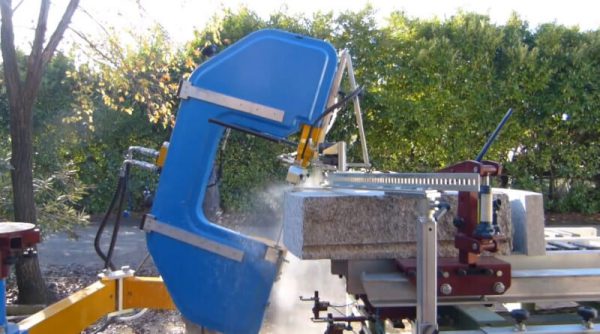

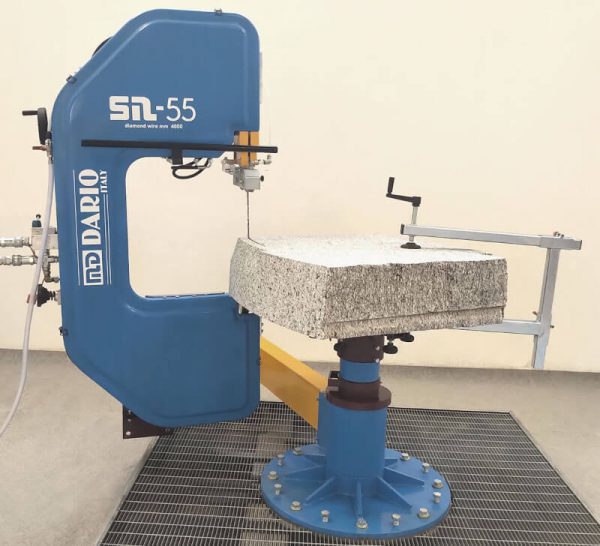

SET 600

With the new SN55 for a maximum cutting height of 55cm
Renovated in its shape and dimensions, the new SET600 is made of the saw SN55, the only manual saw for marble and granite that allows to cut up to 55 cm high.
Suggested for those who need to work pieces of big dimensions of marble and granite, it has been developed to realize shaped works, curves and arcs.
SET600 involves new mechanical components: new is the articulated arm with two swivel connections BS1000, and new is also the tilting device SR1000, more structured and stable in comparison with the previous model SR900. SET 600 includes:

  • SAW SN55
  • COPYING DEVICE
  • BELLOW PROTECTION SYSTEM
  • ARTICULATED ARM BS1000  READ MORE
  • COLUMN
  • ARC CUTTING DEVICE
  • HYDRAULIC MOTOR WITH ADJUSTABLE SPEED
  • TILTING DEVICE SR100
  • MATERIAL SUPPORT
  • PRESSURE LOCK P-250
Watch the video of the device.



Clear
REQUEST INFO

    Contact Us

    Feel free to ask for details, don't save any questions!


    I have read and accept thePrivacy Policy

    captcha



    TECHNICAL DATA

    SN55
    Cutting width 19″ (490 mm)
    Wire lenght 157″ (4000 mm)
    Cutting height 21.5″ (550mm)
    Arm length Maximum radius 78″ (200 cm)
    Hydraulic motor Adjustable speed

    *The cutting heights are approximate, considering a professional and daily use of the machine. Cutting capacity thickness depends on the material type.

    **Cutting speed depends on the type of material, the cutting height and the diamond wire employed.

    PRODUCT FEATURES

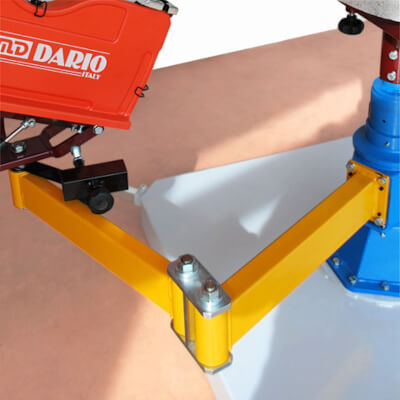

    Articulated Arm

    The articulated arm is the main feature of all MD DARIO® machineries. It allows the bandsaw to rotate in every direction.

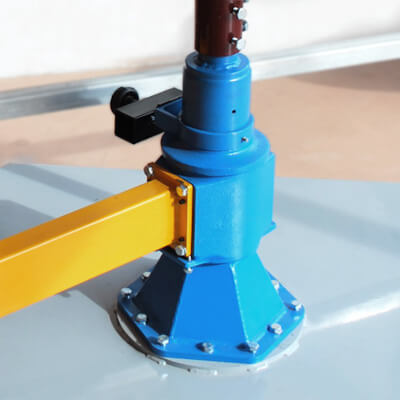

    Column

    The column enables to rotate 360° the machine, realizing multiple circular and shaped cuttings at the same time.

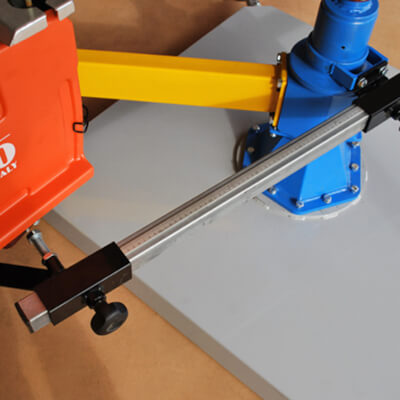

    Arc Cutting Device

    With the arc cutting device, made of a special metric bar, it is possible to cut arcs and circular shapes up to 360°.

    Hydraulic Motor

    Every MD DARIO® marble/granite set is supplied with the hydraulic motor, which enables the operator to use water in complete safety.

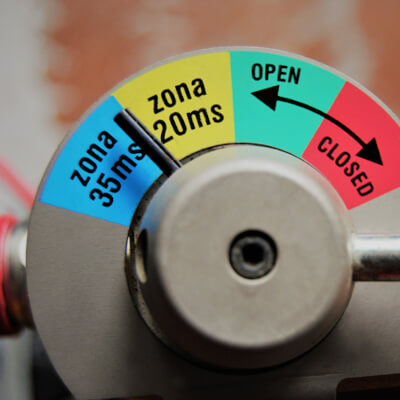

    Speed Regulation

    A lever, connected to the hydraulic motor, allows the speed regulation of the diamond wire. In this way, it is possible to cut different materials with the proper speed.

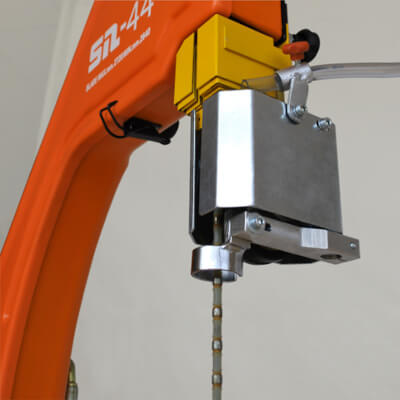

    Copying Device

    The use of the copying device is combined with the template application: the device is leaned on the template and it can reproduce the shape on more stone pieces.

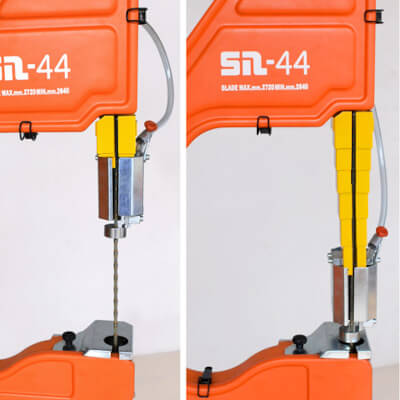

    Bellow Protection

    The bellow protection system protects the wire and it can be regulated according to the cutting height, ensuring a safe work

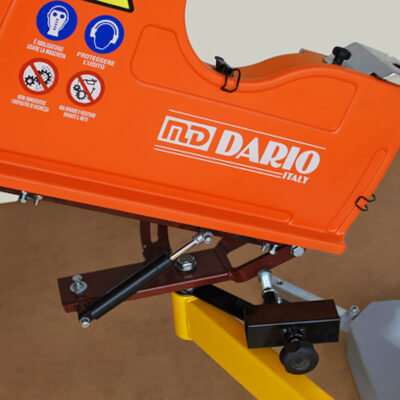

    Tilting Device

    With the tilting device SR700M it is possible to tilt 45° the saw.  The regulation can be easily make through a grade hand wheel adjuster.   It must be considered that to higher inclination corresponds a lower side light.

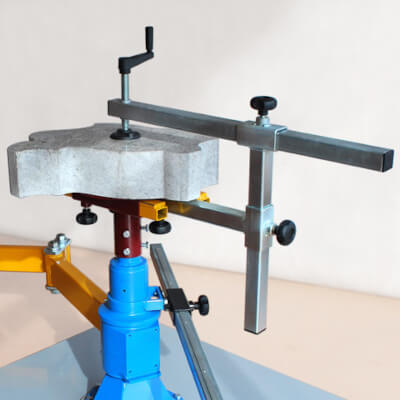

    Material Support

    The material support made of tubes that can be added or removed from the structure, enables to put on materials of different dimensions.

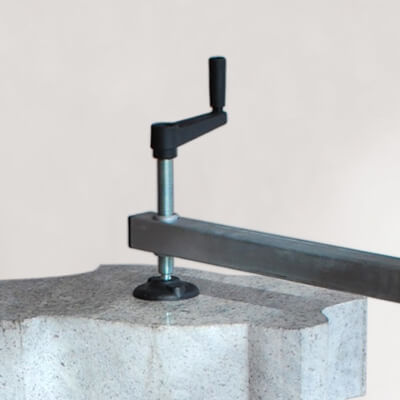

    Pressure Lock

    The material support made of tubes that can be added or removed from the structure, enables to put on materials of different dimensions.

    ADDITIONAL ACCESSORIES

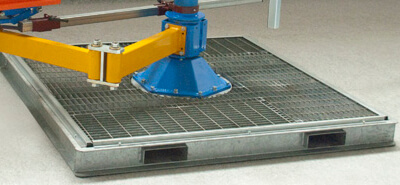

    Platform 200 x 200 cm – The platform 200 x 200cm ensures a bigger working area. The use of grid platform guarantees the water drainage and a higher stability and safety for the operator.

    This kind of platform can be moved using a forklift, but not a pallet truck.

    Upon request, MD DARIO can supply also the tank for water drainage model AQ-090, to use in combination with water recycling devices.

    Extra column – It is possible to add to SET400 an extra column, to fix the piece to cut and realize arcs and shapes working on both sides, without moving the piece. MD DARIO® suggests the combined use of the grid platform 300 x 200 cm.

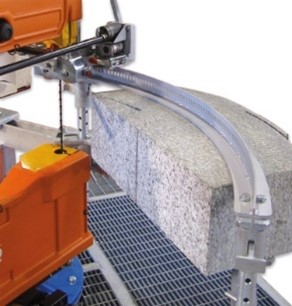

    Automatic Arc Cutting Device  – The automatic arc cutting device allows the automatic advance of the saw STM400. This device involves the use of arc templates (available in different radius) and it is suggested for those who need to cut several pieces in series (for example street curbs).

    The saw automatically follows the template and the operator is needed just to remove the piece that has been cut.
