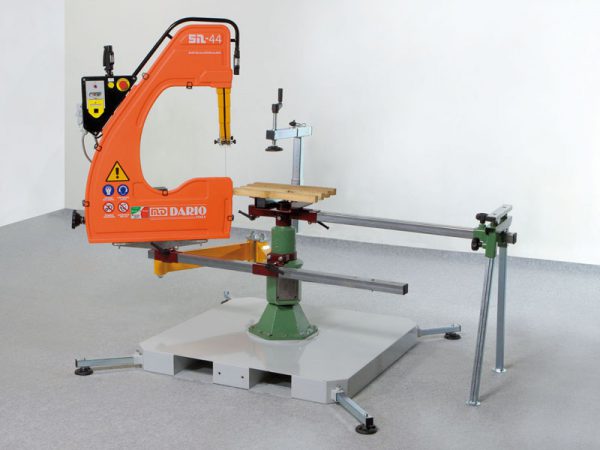

SET 2000
Thanks to the central column, main feature of SET2000, the machine can rotate 360°. This set is suggested for those who need freedom of movements and to perform circular cuttings. SET 2000 includes:
- BANDSAW SN33 OR SN44
- COPYING DEVICE
- BELLOW PROTECTION SYSTEM
- DOUBLE HANDGRIP
- ARTICULATED ARM BS600 READ MORE
- COLUMN
- ARC CUTTING DEVICE
- MATERIAL SUPPORT WITH FRAMEWORK
- PRESSURE LOCK P-250
TECHNICAL DATA
| SN33 READ MORE | SN44 READ MORE | |
| Cutting width | 15″ (390 mm) | 15″ (390 mm) |
| Cutting height | 10″ (250 mm) | 14″ (350 mm) |
| Maximum cutting height with special blade-guide | 12″ (310 mm) | 16″ (410 mm) |
| Dimensions of the work surface | 19″ x 16″ (500 x 400 mm) | 19″ x 16″ (500 x 400 mm)) |
| Blade length | 100″ (2530 mm) | 107″ (2720 mm) |
| Minimum blade width | 0.11″ (3 mm) | 0.11″ (3 mm) |
| Power of the motor | 1.5 HP – 1.1KW | 1.5 HP – 1.1KW |
| Weight | 353 lb (160 Kg) | 364 lb (165 Kg) |
PRODUCT FEATURES

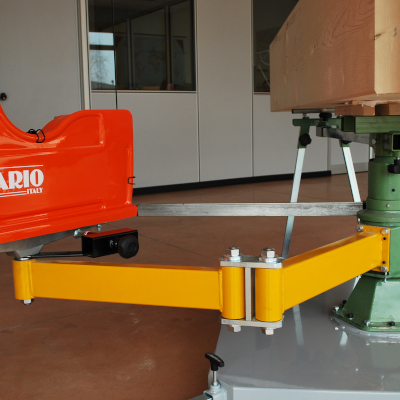

Articulated Arm

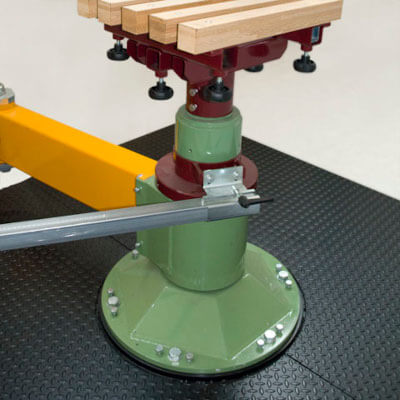

Column

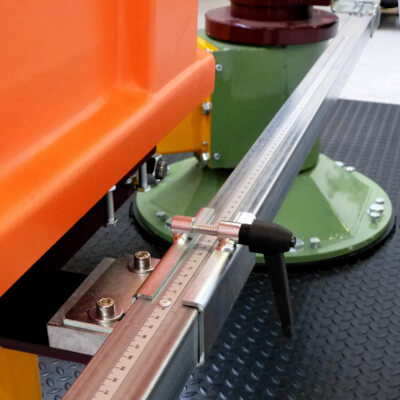

Arc Cutting Device

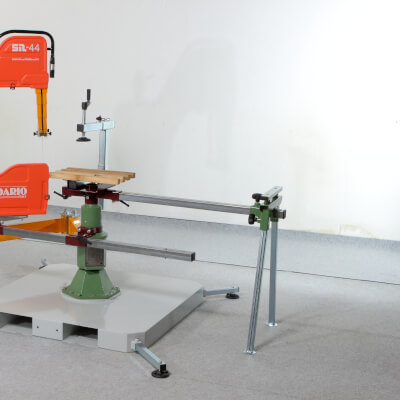

Material Support

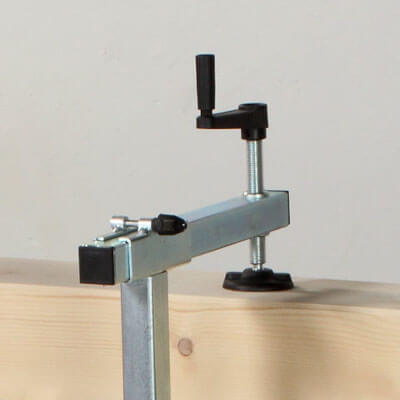

Pressure Lock
Copying Device
Bellow Protection
Double Handgrip
ADDITIONAL ACCESSORIES

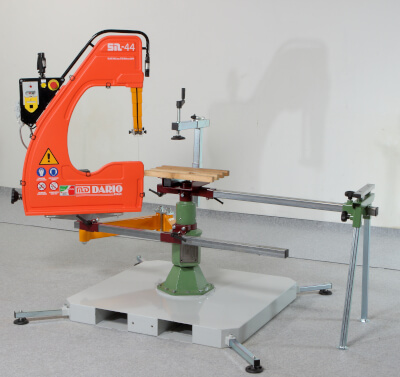

Forklift base – Fixing the column BC800 on the forklift base, it is possible to move SET2000 with a forklift truck, without fastening it on the ground.

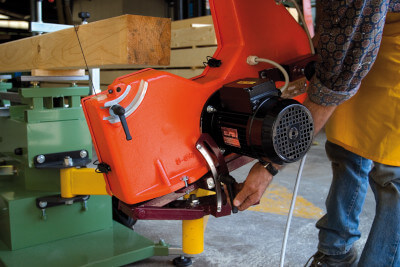

SR700 – The tilting device allows to manually tilt the machine up to 45°. The regulation can be easily make through a grade hand wheel adjuster.It must be considered that to higher inclination corresponds a lower side light.

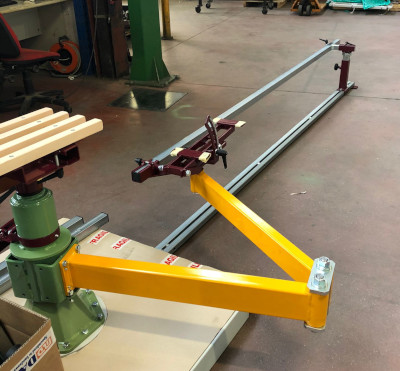

Extended articulated arm –The extended articulated arm BS600EX, reaching an extension of 165 cm, allows to cut circumferences with a maximum radius of 143cm.
The length of the articulated arm can be customized, according to the dimensions of the piece to work

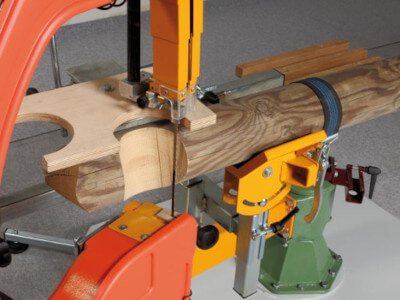

ST100 – The trunk cutting device is a precise and fast system which enables to execute shaped cuttings on circular trunks of different dimensions. It is ideal to realize joint constructions and used to build wooden houses, fences, flowerpots and decorative elements. Watch the video of the device.

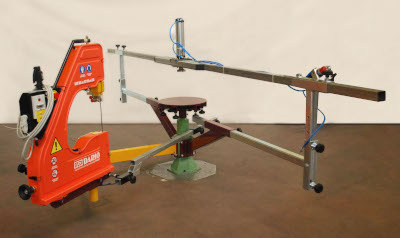

DPC 350 – Double pressure lock: Suggested for the realization of circular shapes of big dimensions. Its structure ensures stability and avoids the tubes to curve
SPECIAL DEVICES

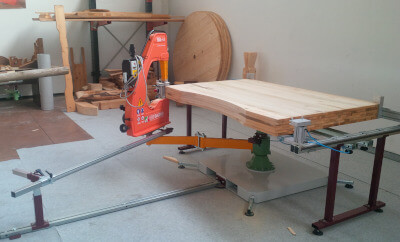

Saddle cut device – The saddle cut device is suggested for the realization of saddles with different radius.
Applied to the column of SET2000, it is made up of a special material support with pneumatic hold-down device.
The dimensions of the support vary according to the dimensions of the saddles to cut. The saddle radius is adjustable through a metric bar applied to the bandsaw.
For special works, it is possible to apply the material advance device and/or the anti-fall device.

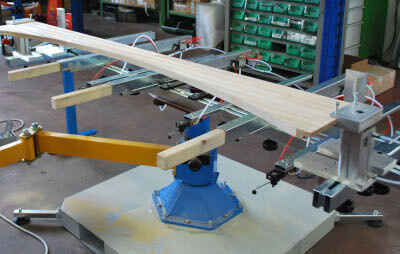

Pneumatic support – The pneumatic support allows to fasten and cut several pieces at the same time (for instance beams, panels, etc.) and it is suggested to shape different kind of wooden pieces: saddles for pipes’ transport, shutters, columns, chairs’ legs, etc.
The combined use of a template allows easier and faster cuts.

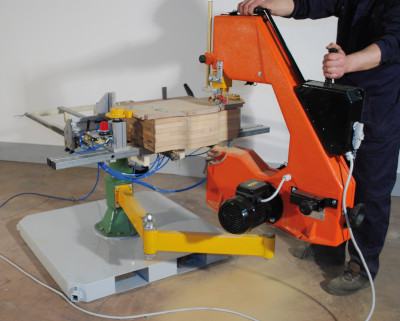

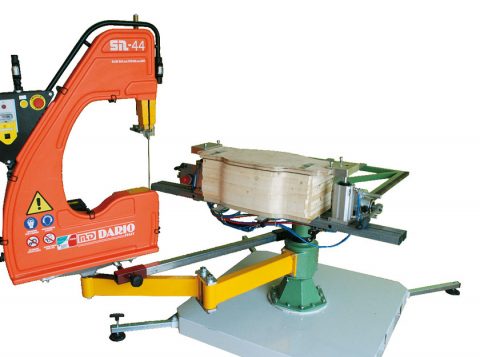

Pneumatic support and material advance device – It is a special pneumatic support, suggested to cut packs of panels, which are moved forward by the material advance device. Once the cutting has been executed, thanks to a mechanical and manual system, the material advance is activated, while an anti-fall device prevents the pieces to fall on the ground.
For this device, it is suggested the use of a template.

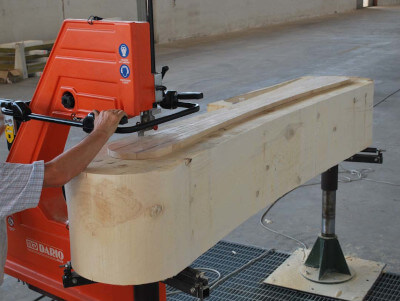

Extra column – It is possible to add to SET2000 an extra column, allowing to fix large dimensions’ pieces that need to be shaped on both sides.

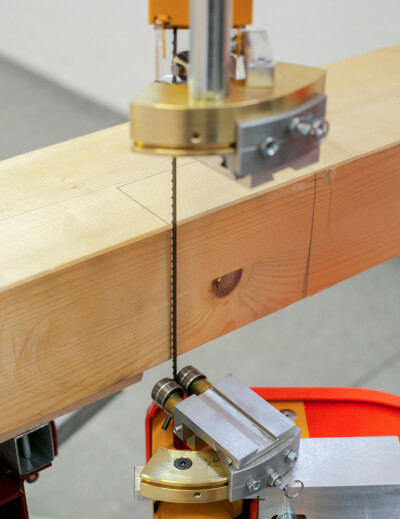

Manual turning blade guide – This special device allows the operator to twist the blade to 30° and shape the middle of the wooden piece wih 90° cuts. This accessory avoid the saw to crush against the beam.

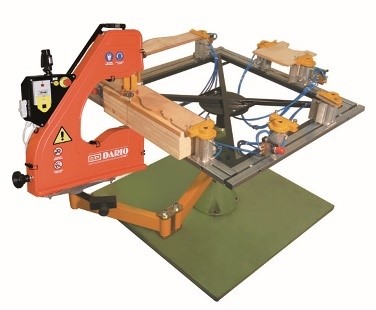

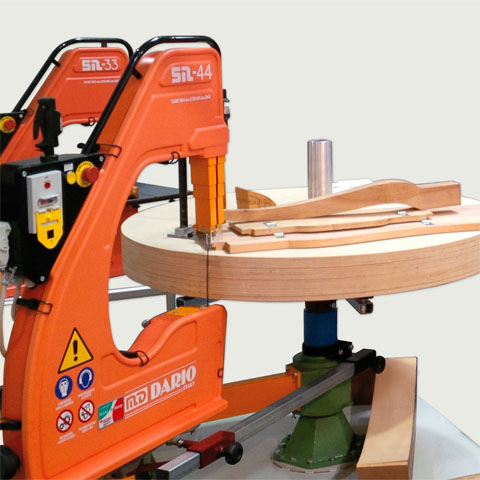

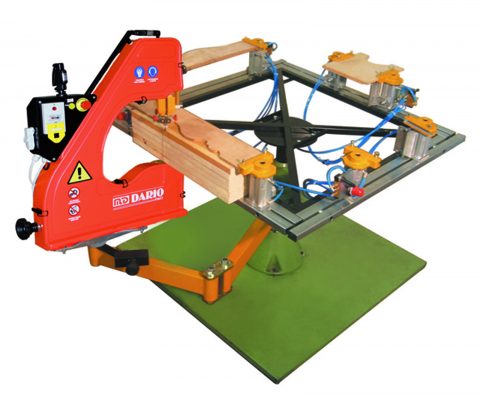

Carousel Device – It is a pneumatic support made of 4 working stations. If the work to realize requires 4 different templates, the carousel device allows to move from one cutting to the other on the different stations. Several panels piled together can be cut at the same time; this can really add up to a significant time savings. Material advance device is not applicable.

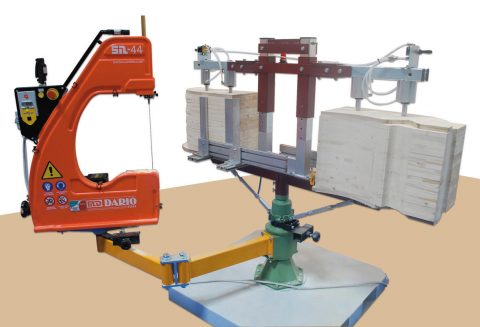

Butterfly Support – The special pneumatic support with double station is the best solution to shape several panels in the shortest possible time. Provided with a pneumatic lock to fasten the material, it allows to overlap the panels, placing the template on top of them. Thanks to the copying device applied to the blade guide, it is possible to follow the template realizing the cut. The operator can execute the cut on one side while another operator can remove the finished pieces and prepare the new material to be cut, with a significant time savings.
